FOCUS: DLLMs Know How to Tame Their Compute Bound

DLLMs Know How to Tame Their Compute Bound

Diffusion LLMs process a full token block at every denoising step, but only around 10% of tokens are decoded. FOCUS predicts decodable tokens from early-layer importance deltas, evicts non-decodable tokens on the fly, and turns the saved FLOPs into higher throughput.

Training-free inference Decodability-aware token eviction LMDeploy + SDAR / LLaDA2.0
Kaihua Liang1Xin Tan2An Zhong1Hong Xu2Marco Canini1
1King Abdullah University of Science and Technology2The Chinese University of Hong Kong
arXiv Code Demo

Replay Demo

0ms
Playing

Prompt












FOCUS
















LMDeploy
















        This replay stores detailed streamed text for one selected request only. Because FOCUS changes which tokens continue through later layers, its generation path and final wording can differ slightly from the LMDeploy baseline.










Overview

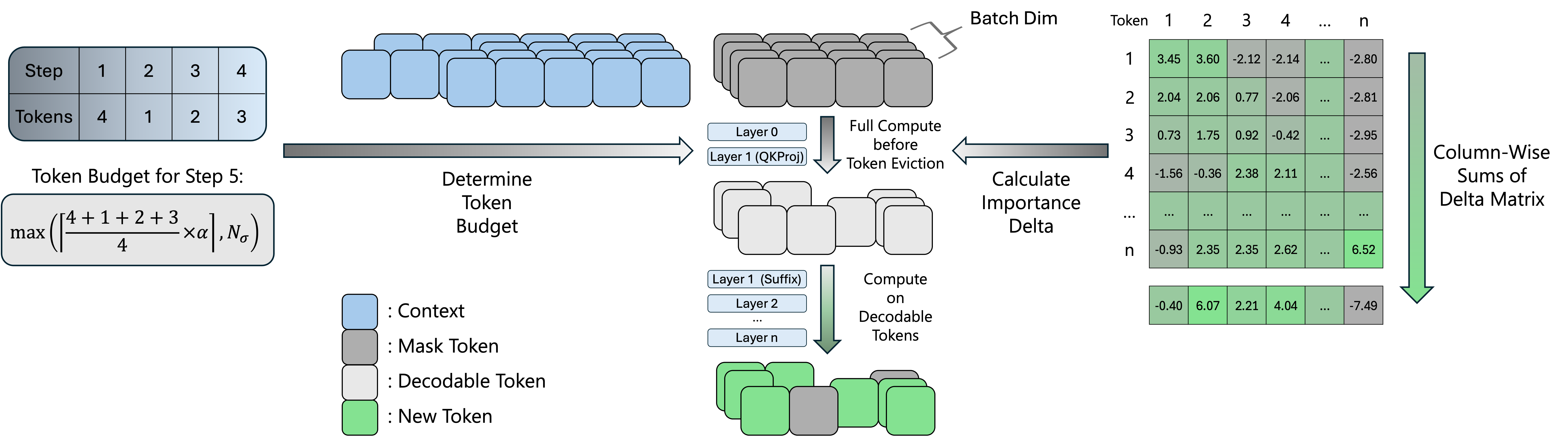

        FOCUS architecture overview


          Design

          FOCUS estimates token importance after the early Q/K projections, keeps likely decodable candidates under an adaptive budget, and removes the rest from later-layer computation.









Motivation


Block-diffusion decoding keeps exact KV caching and parallel decoding, but repeats full-block computation at every step even though only a small subset of tokens decode.






Decodability Signal


The Layer 0-to-1 importance delta separates decodable from non-decodable tokens, giving FOCUS an early signal before the expensive later layers.






Runtime Action


FOCUS uses dynamic budgeting, token eviction, ragged execution, and intra-block KV caching to spend computation on likely decodable tokens.













Efficiency










Throughput scaling on SDAR and LLaDA2.0
FOCUS improves throughput over LMDeploy across datasets, models, and batch sizes.
Throughput scaling
Single NVIDIA A100-SXM4-80GB, tokens / second


LMDeploy

FOCUS

ShareGPT
WildChat
MATH
SDAR
LLaDA2.0





0

700

1400

2100

2800
32







SDAR / ShareGPT / B32
LMDeploy: 838 tok/s
FOCUS: 1218 tok/s / 1.45x



64







SDAR / ShareGPT / B64
LMDeploy: 913 tok/s
FOCUS: 1850 tok/s / 2.03x



128







SDAR / ShareGPT / B128
LMDeploy: 938 tok/s
FOCUS: 2160 tok/s / 2.30x



256







SDAR / ShareGPT / B256
LMDeploy: 979 tok/s
FOCUS: 2272 tok/s / 2.32x









0

700

1400

2100

2800
32







SDAR / WildChat / B32
LMDeploy: 891 tok/s
FOCUS: 1292 tok/s / 1.45x



64







SDAR / WildChat / B64
LMDeploy: 983 tok/s
FOCUS: 1890 tok/s / 1.92x



128







SDAR / WildChat / B128
LMDeploy: 992 tok/s
FOCUS: 2205 tok/s / 2.22x



256







SDAR / WildChat / B256
LMDeploy: 1001 tok/s
FOCUS: 2324 tok/s / 2.32x









0

800

1600

2400

3200
32







SDAR / MATH / B32
LMDeploy: 1469 tok/s
FOCUS: 1766 tok/s / 1.20x



64







SDAR / MATH / B64
LMDeploy: 1571 tok/s
FOCUS: 2500 tok/s / 1.59x



128







SDAR / MATH / B128
LMDeploy: 1628 tok/s
FOCUS: 2788 tok/s / 1.71x



256







SDAR / MATH / B256
LMDeploy: 1635 tok/s
FOCUS: 2930 tok/s / 1.79x









0

900

1800

2700

3600
32







LLaDA2.0 / ShareGPT / B32
LMDeploy: 472 tok/s
FOCUS: 973 tok/s / 2.06x



64







LLaDA2.0 / ShareGPT / B64
LMDeploy: 1770 tok/s
FOCUS: 1644 tok/s / 0.93x



128







LLaDA2.0 / ShareGPT / B128
LMDeploy: 2067 tok/s
FOCUS: 2495 tok/s / 1.21x



256







LLaDA2.0 / ShareGPT / B256
LMDeploy: 2181 tok/s
FOCUS: 3369 tok/s / 1.54x









0

900

1800

2700

3600
32







LLaDA2.0 / WildChat / B32
LMDeploy: 470 tok/s
FOCUS: 917 tok/s / 1.95x



64







LLaDA2.0 / WildChat / B64
LMDeploy: 1610 tok/s
FOCUS: 1551 tok/s / 0.96x



128







LLaDA2.0 / WildChat / B128
LMDeploy: 1973 tok/s
FOCUS: 2393 tok/s / 1.21x



256







LLaDA2.0 / WildChat / B256
LMDeploy: 2037 tok/s
FOCUS: 3229 tok/s / 1.59x









0

1400

2800

4200

5600
32







LLaDA2.0 / MATH / B32
LMDeploy: 764 tok/s
FOCUS: 1544 tok/s / 2.02x



64







LLaDA2.0 / MATH / B64
LMDeploy: 3306 tok/s
FOCUS: 2530 tok/s / 0.77x



128







LLaDA2.0 / MATH / B128
LMDeploy: 3903 tok/s
FOCUS: 3800 tok/s / 0.97x



256







LLaDA2.0 / MATH / B256
LMDeploy: 4022 tok/s
FOCUS: 5017 tok/s / 1.25x




Batch size


Hover over each batch group to inspect throughput.





            Summary

            On a single NVIDIA A100-SXM4-80GB GPU, FOCUS reaches up to 2.32x throughput over the LMDeploy baseline by reducing redundant block computation as batch size grows. The paper also reports up to 3.52x speedup at block size B=64 on ShareGPT with SDAR, where the larger diffusion block makes the compute bottleneck more pronounced.














Quality












                Conf.
                Method
                alpha
                GSM8K
                Math500
                HumanEval
                MBPP
                IFEval
                Avg.






                0.9
                Baseline
                -
                89.20
                64.70
                69.82
                56.81
                57.45
                67.60




                0.9
                FOCUS
                1.2
                89.84
                64.60
                72.56
                58.17
                60.97
                69.23




                0.9
                FOCUS
                1.5
                90.15
                64.30
                69.51
                61.09
                60.87
                69.18




                0.9
                FOCUS
                1.8
                90.75
                63.80
                71.34
                58.95
                60.11
                68.99




                0.8
                Baseline
                -
                87.57
                59.30
                65.85
                50.78
                58.69
                64.44




                0.8
                FOCUS
                1.2
                90.33
                64.10
                67.68
                58.56
                59.91
                68.12




                0.8
                FOCUS
                1.5
                89.73
                62.20
                69.21
                59.73
                60.97
                68.37




                0.8
                FOCUS
                1.8
                89.39
                62.10
                69.82
                56.81
                61.14
                67.85




                0.7
                Baseline
                -
                84.65
                54.60
                59.76
                50.58
                58.47
                61.61




                0.7
                FOCUS
                1.2
                89.24
                62.00
                68.29
                56.81
                61.91
                67.65




                0.7
                FOCUS
                1.5
                89.31
                62.20
                64.33
                55.25
                62.26
                66.67




                0.7
                FOCUS
                1.8
                88.03
                59.80
                64.33
                53.89
                60.08
                65.23









          Summary

          On SDAR, FOCUS improves the five-task average across confidence thresholds, including the default Conf=0.8, alpha=1.5 setting.

          Source: paper Table β€œGeneration Quality across Thresholds and alpha on SDAR”.












Citation





@article{liang2026focus,
  title   = {FOCUS: DLLMs Know How to Tame Their Compute Bound},
  author  = {Kaihua Liang and Xin Tan and An Zhong and Hong Xu and Marco Canini},
  journal = {arXiv preprint arXiv:2601.23278},
  year    = {2026},
  url     = {https://arxiv.org/abs/2601.23278}
}
